Page 7:50 Changing bulbs

Go To Top of Page.

Changing bulbs               Changing bulbs

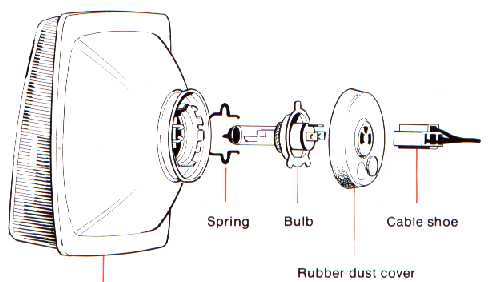

        Rubber dust cover                       Cable shoe                                                     Headlamp



Changing the headlamp bulbs

Both headlamp bulbs are changed from inside
the engine compartment.

Change as follows:
1 Open the bonnet.
2 Disconnect the cable shoe by pulling it
    straight backwards.
3 Remove the rubber dust cover.
4 Squeeze and bend up the spring securing
    the bulb. Change the bulb.
Re-fit reverse order. The bulb's three guide
warts asymmetrical position permit the bulb
to be fitted in one way only/

Note! Never touch the bulb with your fingers
since this could transfer any grease and oil on
the hands to the glass. Subsequent heat from
the bulb will then quickly ruin the reflector.


Bulb


Full/dipped
beams

Power



60/55 W

Socket



H 4











Page 7:51 Changing bulbs

Go To Top of Page.

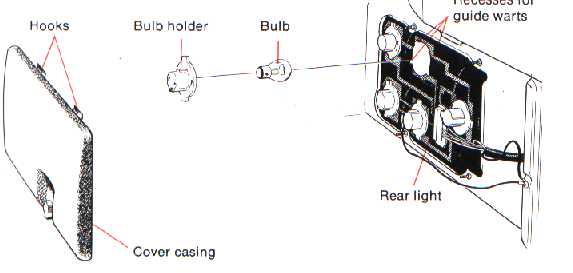

Recesses for
guide warts



Changing bulbs Changing bulbs

Bulbs, rear

All the bulbs in the rear light cluster are changed from inside the boot.
Proceed as follows:
1 Unscrew the cover casing. To unhook from the hooks in the upper
    edge, pry and pull up the lower edge and release from the hooks.
2 Turn the bulb holder with the damaged bulb about 1 cm anti-clock-
    wise and remove the holder.
3 Remove the damaged bulb by pressing in and turning it anti-clock-
    wise.
4 Fit the new bulb in the holder and re-fit the holder in the rear light
    cluster. Note that one of the warts is broader than the other two. It
    must fit in the wider recess in the hole. Turn the bulb holder clock-
    wise. Check that the bulb lights and re-fit the cover casing.




Bulbs

1 Brakelights
2 Reversing lights
3 Rear direction indicators
4 Rear lights
5 Reflectors
6 rear lights*

*Fog lights on certain markets, 21 W
Power

21 W
21 W
21 W
  5 W
-
  5 W*


Socket

Ba 15 s
Ba 15 s
Ba 15 s
Ba 15 s
-
Ba 15 s










Page 7:52 Changing bulbs

Go To Top of Page.

Front lights Boot lights Number plate light

Front lights

Remove the Phillips srews and the lens. The
bulbs are changed by pressing them in slightly
and then turning them anti-clockwise.

Bulb

1 Parking light*
    (day running light)
2 Direction
    indicator


*On cars with parking
light only
Power

  21/5 W
(32/3 CP)

21 W



5 W
Socket

BAY 15 d


Ba 15 S



BA 15 s

Boot light

Remove the screw securing the bulb housing
and lift out the housing to the right.
Change the bulb.
Re-fit the bulb housing by fitting with the
guide warts in the recesses to the left and then
pressing in the bulb housing into position.
Srew tight with the screw.

Bulb

Bootlight
Power

15 W
Socket

S 8,5



Number plate light

Insert the screwdriver in between the body and
the light housing and pry loose the housing
Observe due care not to damage the paint-
work.
Change the bulb.
Re-fit the housing by inserting in the recess at
the front edge. Then press in the rear end up-
wards so that the housing sits securely in posi-
tion.


Bulb

Number plate light
Power

4 W
Socket

BA 9 s




Page 7:53 Changing bulbs

Go To Top of Page.

Engine compartment light Courtesy light, spotlights Courtesy light, Spotlight


Engine compartment light

The lights here are similar. Remove the screw
securing the bulb lens and lift the lens out-
wards to the left.
Change the bulb.
Re-fit the lens by inserting the guide pins
in their recesses and than by pressing in the
lens. Screw tight with the screw.



Bulbs

Engine compartment light
Power

15 W
Socket

S 8,5

Courtesy light, spotlights

Removing the glass by firmly gripping it as
shown by the arrows in the illustration and
than by folding it outwards.
Change the bulb.
When re-fitting the spotlight glass, make sure
that the switch is at the bottom.



Bulbs

1 Courtesy light
2 Spotlight
Power

5 W
4 W
Socket

S 8,5
BA 9 S

    Instrument panel lighting, etc.

    The bulbs for the instrument panel lighting and switches are placed in such a way that
    the bulbs should be replaced by a Volvo workshop




Page 7:54 Fuses

Go To Top of Page.

Fuses

Fuses

All the fuses are grouped under a cover at the
front of the left-hand front door (see illustra-
tion above).
The cover is removed by tuning the small
knob at thebottom a ¼ turn.
If a fuse has to be replaced, always fit a new
one with correct rating.
Never fit a fuse with a higher rating.
If fuses blow repeatedly, you should have the
electrical system checked by a workshop.
The dipped/fullbeam headlights are not wired
via a fuse.
Fuses




  1 Cigarlighter
     Headlight wipers/washers
     El. operated rear view mirrors
     Power antenna
  2 Windscreen wipers/washers
     Horn
  3 Heater fan
  4 Day running lights
     Fasten seat belt warning buzzer
     Ignition key reminder buzzer
  5 Fuel pump (tank pump E-engines)
  6 Brake lights
     Relay, Courtesy light
  7 Fuel pump (main pump E-engines)
  8 Courtesy light
     Glove compartment light
     Clock
     Boot light
     Engine compartment light
  9 Hazard warning lights
10 Electrically operated window winders
     Overdrive (certain markerts)
11 El. heated rear window
12 Reversing lights
     Window winder relay
     Heated driver's seat
     Air conditioning
13 Instruments
     Direction indicators
     Solenoid valve
     Relay, fuel injection
     Fasten seat belt warning light
     temperatur warning
14 Spare
15 Left-hand parking lights
     Number plate lights
     Rear fog lights (certain markets)
16 Right-hand parking lights
     Instruments and panel lights
     Lights-on reminder buzzer
17 Space for spare fuses

Fuse rating

  8 A



16 A

16 A
  8 A


  8 A
  8 A

16 A
  8 A




  8 A
16 A

16 A
  8 A



  8 A






  8 A


  8 A







Text and pictures from owners manual yearmodel 1979
